Industrial Control Products
Provides industrial PCs for the automation sector, ensuring stable operation in harsh environments with industrial-grade standards.
Get Industrial Control Product Quote
Product Overview
Qiu Shi Electronics specializes in industrial automation, providing end-to-end manufacturing services—from circuit design and PCBA assembly to full-unit testing—for PLCs, HMIs, industrial PCs, sensor modules, and other industrial automation equipment. Our products meet rigorous industrial-grade requirements for wide temperature range, anti-interference capability, and long service life.

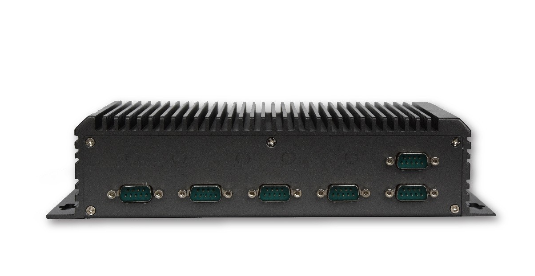

Fanless Industrial PC
Equipped with 11-gen Intel Core (Tiger Lake) · Supports 6 COM ports, 8 USB ports, and 2 Intel Gigabit Ethernet interfaces · Provides 3 M.2 slots for Sata/Pcie SSDs, WiFi+BT,4G/5G, and other modules · DC 12V input with lockable DC-IN connector

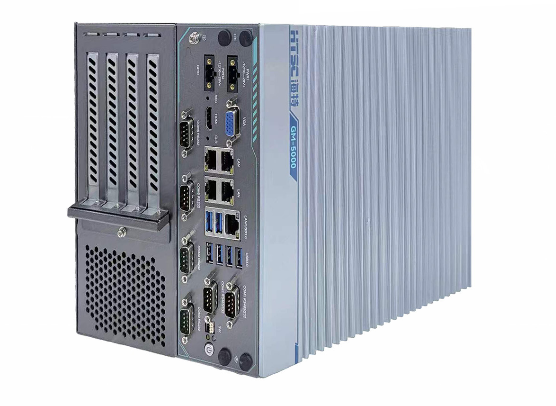

Scalable Industrial PC
• Isolated and surge-protected serial port • Supports 6xUSB,6x COM ports • Provides 1*i219+4*i210, compatible with EtherCAT protocol • Wide voltage input: 12~28V

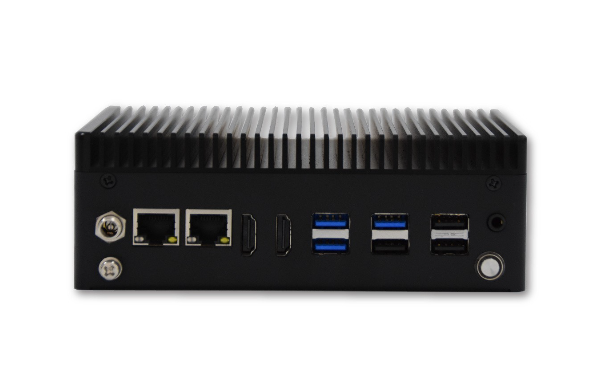

Micro Industrial PC
• Powered by Intel Elkhart Lake Celeron J6412 processor • Equipped with 2 Intel i226-V Gigabit Ethernet ports and 2 HDMI high-definition display outputs • Includes 3 USB 3.0, 0,3 USB 2.0, and 0,2 COM ports • Features 2 M.2 slots and 2,1 Mini PCIe slots for Wi-Fi or 4G/5G modules • Supports DC 12V input with a locking DC-IN connector

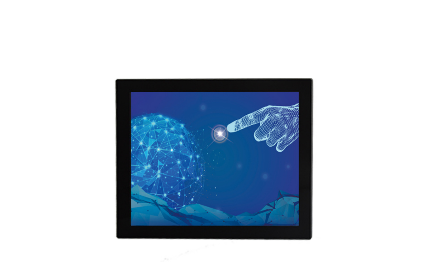

Standard-screen Industrial All-in-One PC
• 17-inch full-screen fanless design with IP65 front panel rating for water and dust resistance • Supports 10-point projected capacitive touch screen and 5-wire resistive touch screen • Includes 4 COM ports, 4 USB ports, and 2 Intel Gigabit Ethernet ports • Supports embedded and VESA mounting • Accepts input voltage from 12 to 28V

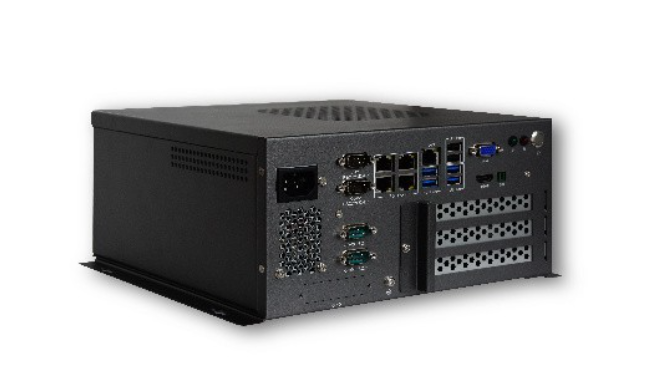

Smart Mini Expandable Industrial PC
• Supports Intel® 6/7/8/9th Gen Core™ i7/i5/i3 or Intel® 12/13/1 4th Gen Core™ i7/i5/i3 • Features Intel H110 or Intel H610 chipset with optional TPM encryption chip • Includes 5 Intel Gigabit Ethernet ports, 4 of which support PoE • Provides 1 VGA and 1 HDMI outputs for dual-display support • Offers 1 PCIe x1 slots and 2 PCI slots • Supports remote power-on

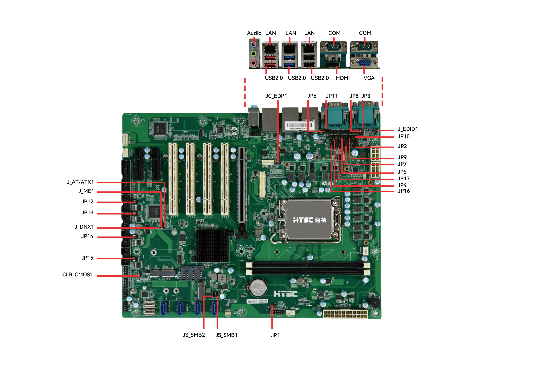

MB-AH810 Core Ultra Series 2 Gen Intel® Ultra Processor ATX
• Supports Intel® Ultra Processors (Series 2) • Supports 6 x COM, 8 x USB2.0, 4 x USB3.0, and 3x Gigabit Ethernet ports • Includes 1 x VGA, 1 x HDMI, and 1 x eDP • Features 1 x PCIe X16, 2 x PCIe X2, and 4x PCI
Use Cases
Need product customization?
Our engineering team provides professional product design and manufacturing support.
Get Industrial Control Product Quote
